T10 Office Panel System

Office Cubicles · Office Partitions

T10 Office Panel System

An 83 mm architectural panel system delivering substantial structural presence, high-capacity internal cable routing and integrated door frame options for executive cubicles, call centers and private office suites.
Best For
Executive cubicles, private manager offices, call centres and team clusters.
Custom Options
Panel type, height, finish, storage and power.
Project Value
Snap-fastener assembly, with panels and posts reused as teams change.
Request Quote Get Layout Support

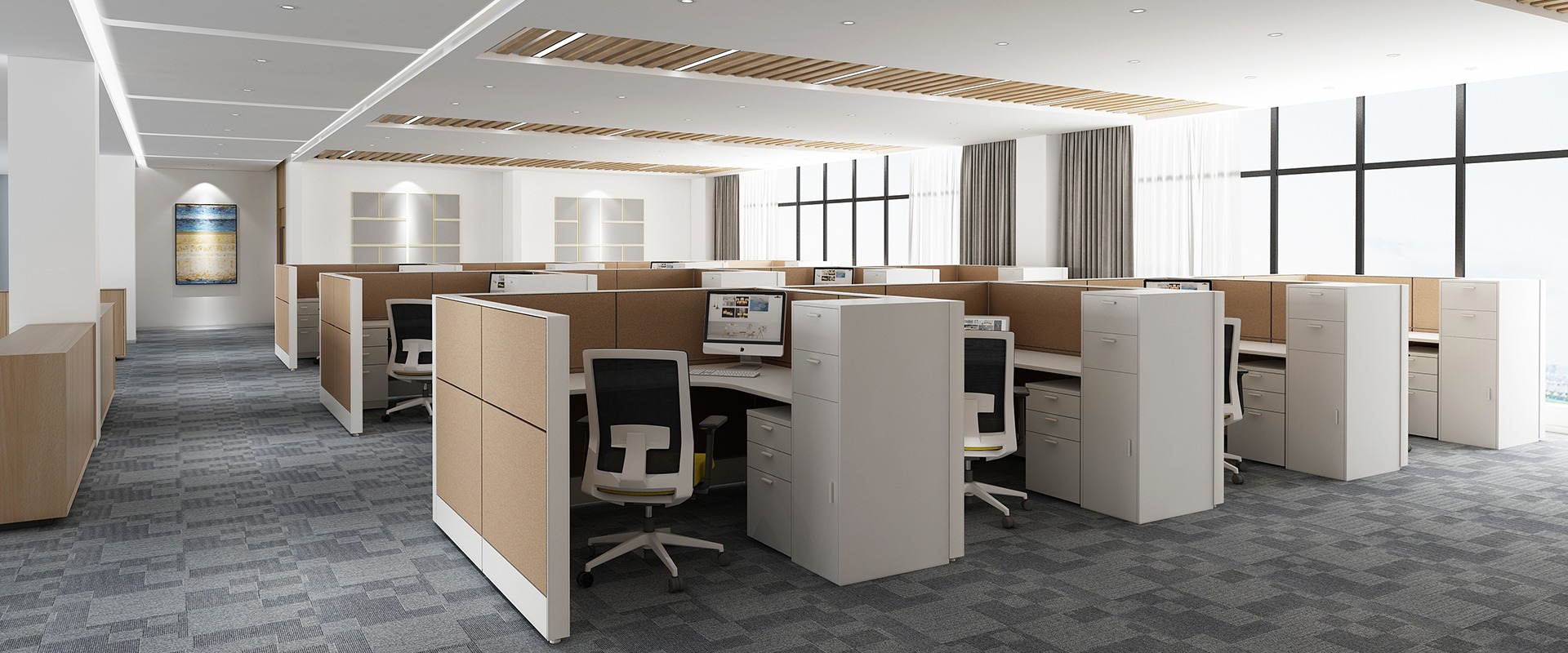

T10 Office Partition Overview

T10 office partition system is a practical and sleek choice for workspaces. With the fast assembling design you can easily set up the workstation you like from office cubicles, simple workstations to call center etc.
The generous internal cavity accommodates dense multi-circuit power wiring, high-volume data cables and dedicated sound-dampening infills without bulging. Engineered thin-wide transition posts (profile 3914#) allow 83 mm primary spine walls to connect seamlessly into slimmer 32 mm T3 workstation dividers, keeping overall floorplate costs balanced.
Engineering planning support: Send your floor plan, workstation count and power drops — we configure 2D layouts and 3D proposals tailored to your project.
T10 Office Panel System

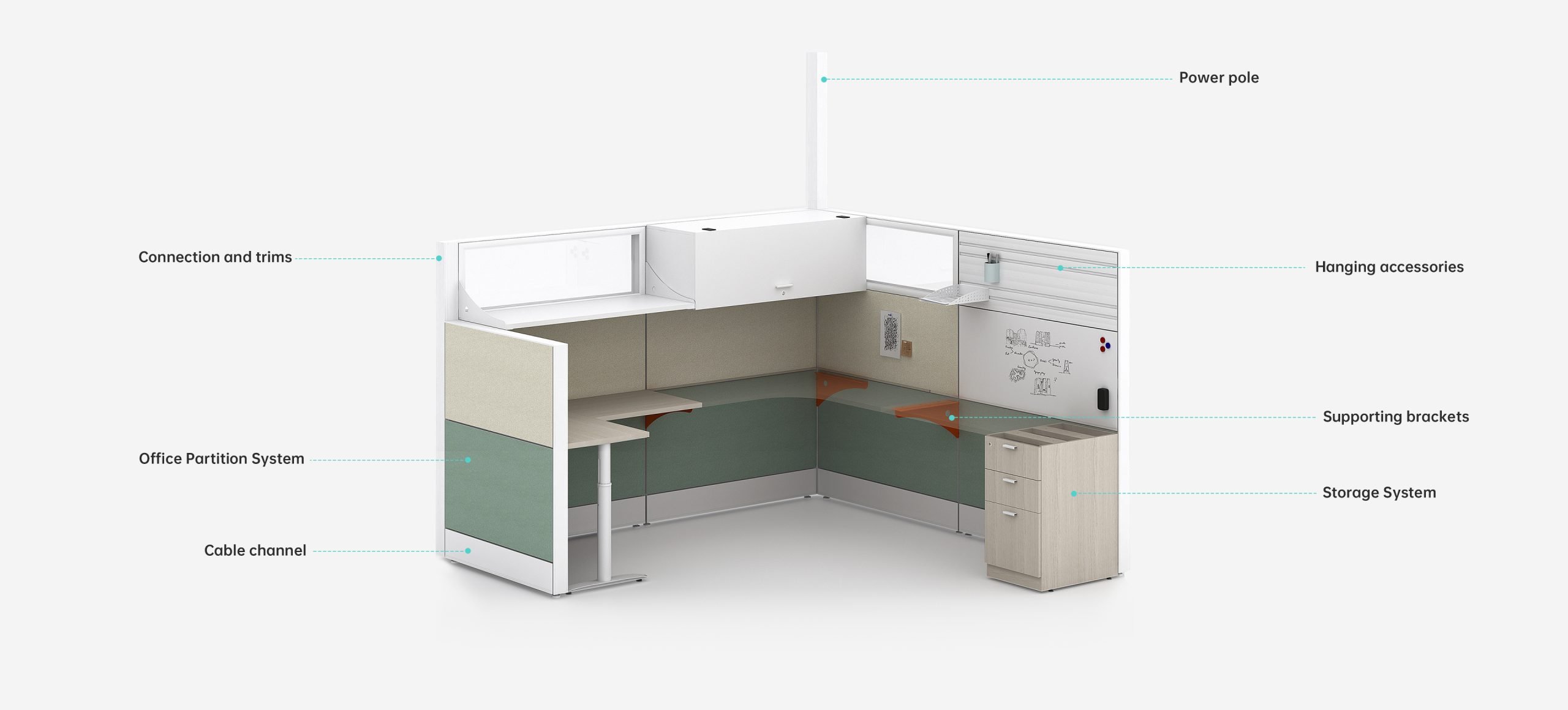

Key Features for Project Buyers

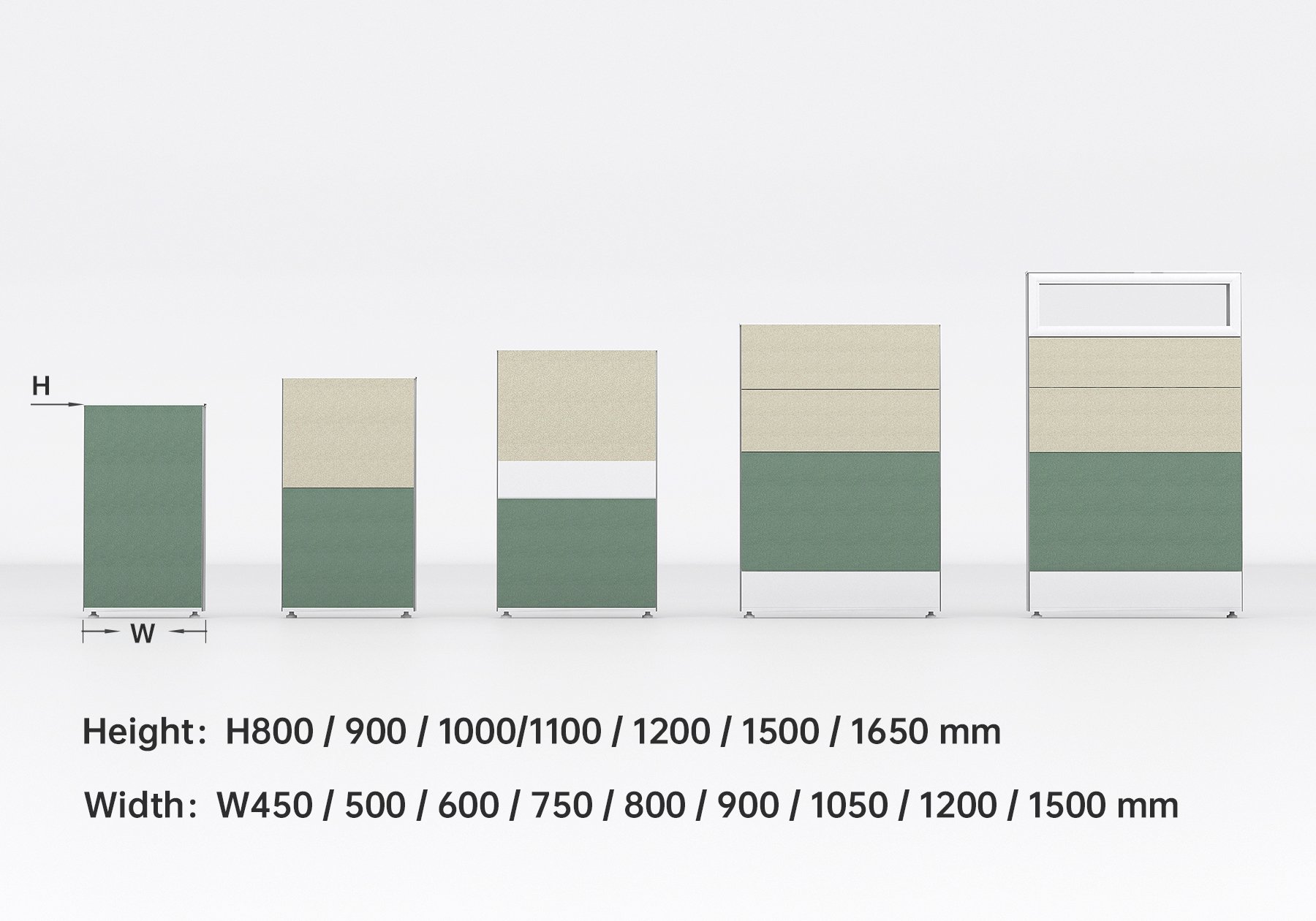

Dimension & Stack-on

T10 offers a wide range of panel dimensions to meet different requests from height to width. Also optional cable channel/raceway helps in different cabling demand. Enable you to transform office cubicle easily.

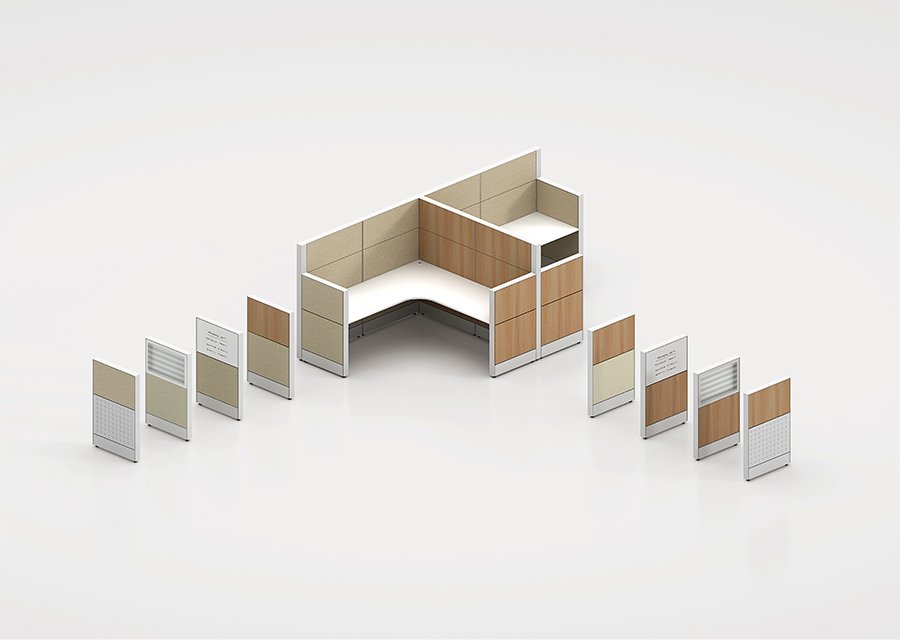

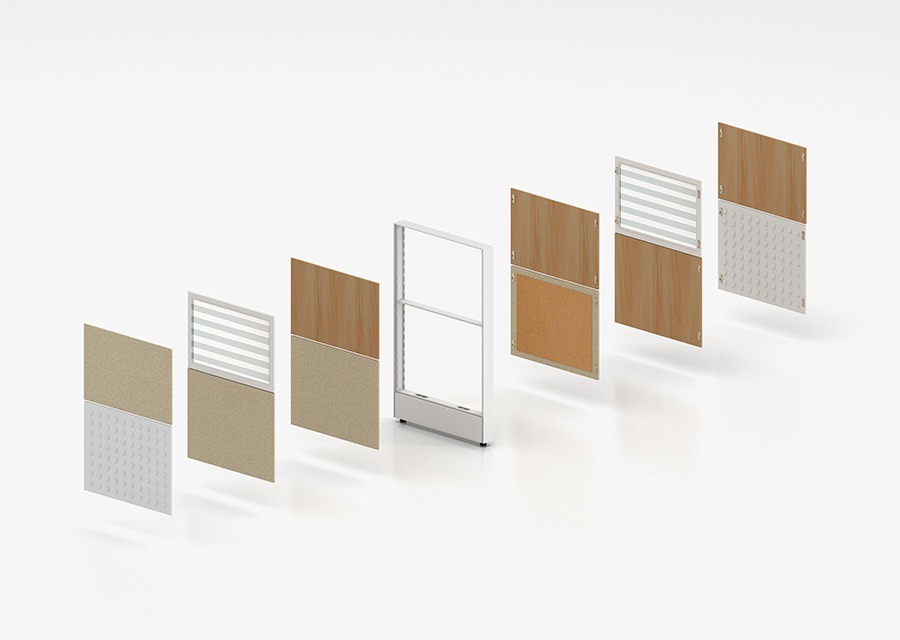

Panel Finishes

Choose from durable steel, stylish melamine, fabric, practical whiteboard, functional tackable fabric, glass, or acoustic panels. Mix & match to create agile, inspiring work zones. Design freedom make simple.

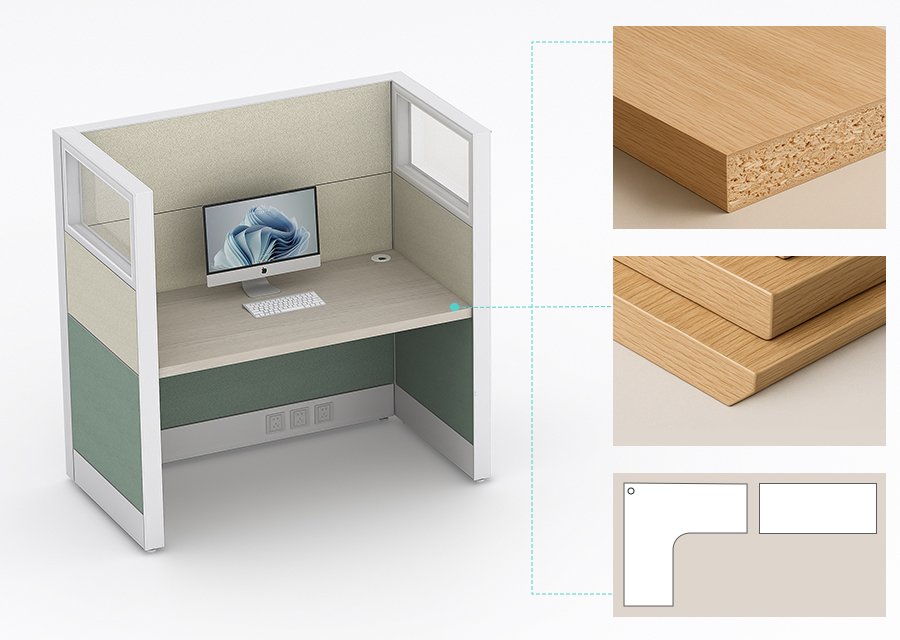

Table Top

Choose from durable steel, stylish melamine, fabric, practical whiteboard, functional tackable fabric, glass, or acoustic panels. Mix & match to create agile, inspiring work zones. Design freedom make simple.

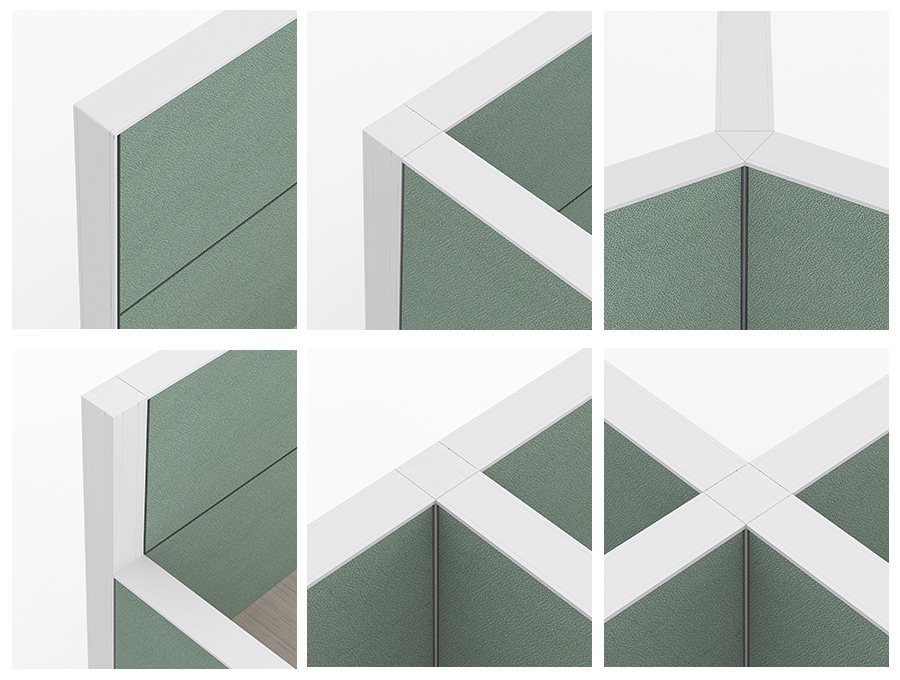

Connection & Trims

T10 aluminum connection system offers 2-way, 3-way, 4-way, and 120° joints. Plastic end trims/caps included. Its thin-wide connecting posts allow seamless integration with T3 (32mm thick).

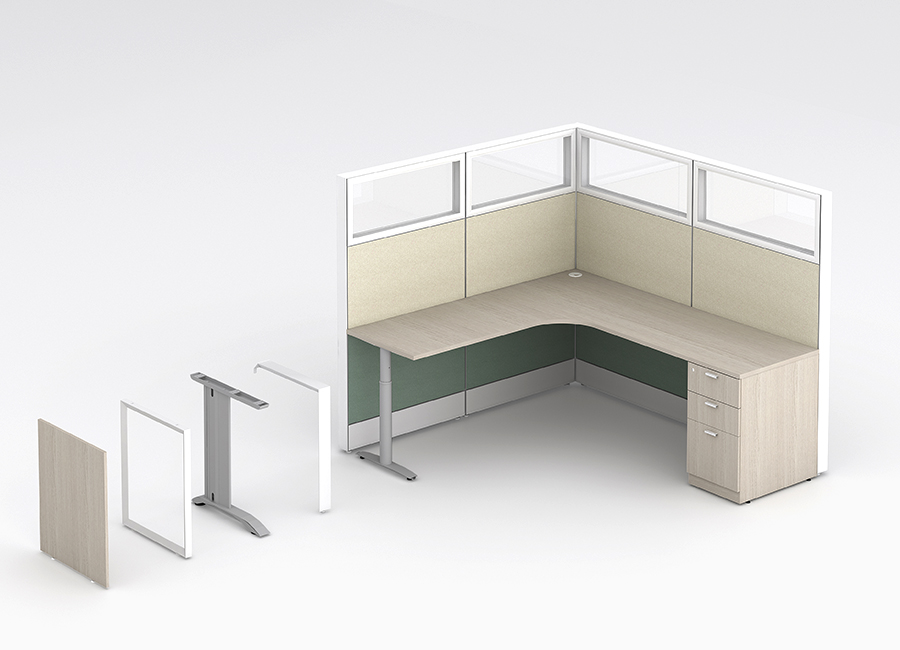

Supporting System

Choose from selected metal or wooden support styles to suit the workstation design and configuration.

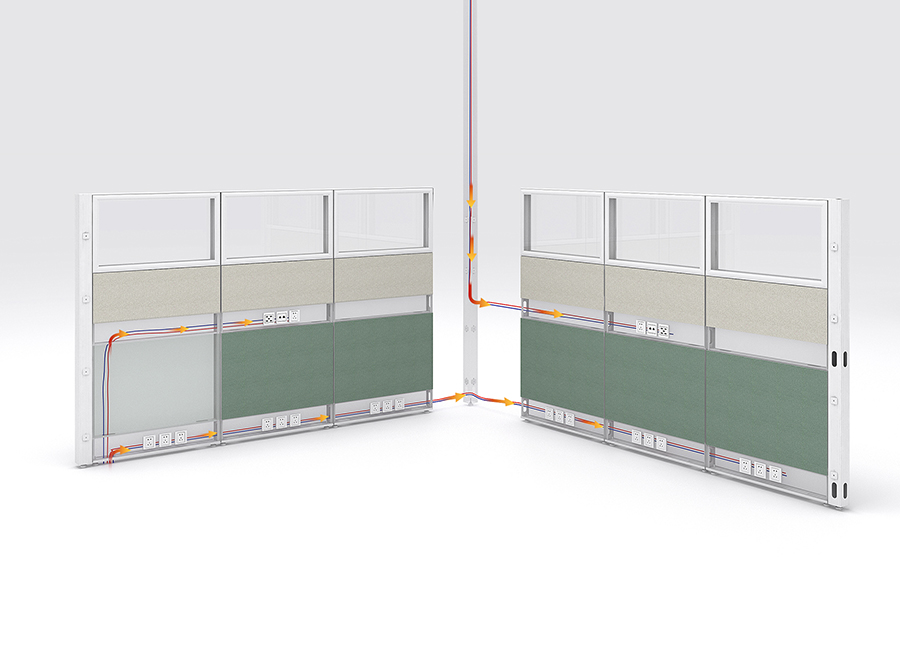

Cable Management

Integrated floor-to-ceiling cable routing​ conceals wires within partition channels. Custom socket cutouts accommodate diverse socket types. Smart Power Hub consolidates power and data (CAT6, USB, Type-C, HDMI, wireless charging).
T10 Office Panel System

Product Parameters

Published specifications and configuration choices verified from technical engineering documentation.

Specifications for T10 Office Panel System
ITEMOPTIONSNOTES
Panel system T10 Office Cubicles and Partitions / T10 Office Panel System 83 mm heavy architectural panel system
Frame material Extruded Aluminum alloy 6063-T5 Powder-coated or anodized finish
Panel infills Fabric, glass, melamine, steel sheet, whiteboard, acoustic tiles Modular tile hook mounting on frame
Panel size Height = 900, 1000, 1100, 1200, 1350, 1500, 1600, 1800 mm
Width =450, 500, 600, 750, 800, 900, 1000, 1200 mm		 Availability depends on block structure and selected configuration
Joint Configurations 2-way, 3-way, 4-way and 120° joints, finished with plastic end trims and caps Confirm by selected finish and project specification
Table top 25mm thickness MFC or MDF, Straight and L-shaped, with 2 mm PVC edge banding Dimensions quoted from the layout

Customization Options

Contact us to confirm finishes and resources for your project.

PRODUCT INFORMATION

Materials & Colors

Melamine
XD-1001 Grey
XD-1001 Grey
XD-1004 Charcoal Grey
XD-1004 Charcoal Grey
XD-1009 White
XD-1009 White
XD-1051 Black
XD-1051 Black
XD-1040 North American Walnut
XD-1040 North American Walnut
XD-1037 Bullace Elm
XD-1037 Bullace Elm
XD-1028 Red Walnut
XD-1028 Red Walnut
XD-1026 Oak Relievo
XD-1026 Oak Relievo
XD-1025 Black Oak Relievo
XD-1025 Black Oak Relievo
XD-1024 Engineer Oak
XD-1024 Engineer Oak
XD-1023 White Oak Relievo
XD-1023 White Oak Relievo
XD-1022 Red Oak Relievo
XD-1022 Red Oak Relievo
XD-1021 Fir
XD-1021 Fir
XD-1020 Maple
XD-1020 Maple
XD-1016 Walnut
XD-1016 Walnut
XD-1014 Teak
XD-1014 Teak
XD-1056 Storm
XD-1056 Storm
XD-1057 Grey Fog
XD-1057 Grey Fog
Metal
F1 Platinum
F1 Platinum
UTOR-69 Matt White
UTOR-69 Matt White
UTOR-64 Red
UTOR-64 Red
UTOR-55 Blue
UTOR-55 Blue
UTOR-20 Anodized Grey
UTOR-20 Anodized Grey
UTOR-13 White
UTOR-13 White
UTOR-07 Charcoal Grey
UTOR-07 Charcoal Grey
UTOR-01 Sanded Grey
UTOR-01 Sanded Grey
F3 Black
F3 Black
Fabric
15-01
15-01
15-02
15-02
15-03
15-03
15-04
15-04
15-06
15-06
15-07
15-07
15-08
15-08
15-09
15-09
15-10
15-10
15-11
15-11
15-13
15-13
15-15
15-15
15-16
15-16
15-17
15-17
15-18
15-18
15-19
15-19
15-20
15-20
15-21
15-21
15-41
15-41
15-48
15-48
15-55
15-55
15-49
15-49
15-55
15-55
15-101
15-101
15-41
15-41
15-103
15-103
15-104
15-104
15-105
15-105
15-106
15-106
15-107
15-107
15-108
15-108
15-109
15-109
15-110
15-110
15-111
15-111
15-118
15-118
15-153
15-153
15-119
15-119
15-155
15-155
15-158
15-158
15-161
15-161
15-164
15-164
15-167
15-167
15-171
15-171
15-175
15-175

3D Models

Downloads

End-to-End Office Furniture Project Journey

A clear six-step process for product selection, order confirmation, production, and delivery.

  1. 01. Inquiry
    & Requirements

    Share floor plans, quantity, functional zones, project location and target timeline.

  2. 02. Configuration
    & Proposal

    Confirm product dimensions, material options, design details, storage and power layout.

  3. 03. Sample &
    Material Approval

    Review material swatches and technical drawings; confirm colors & specifications. Client sign-off before production.

  4. 04. Production
    & Inspection

    In-process and finished-goods checks against approved specifications.
    Full QC validation.

  5. 05. Packing
    & Shipping

    KD packing, container loading and logistics coordination. Complete shipping documentation.

  6. 06. After-sales
    Support

    Assembly guidance and spare-parts service after handover. Long-term ongoing support.

Questions Before Specifying T10

Direct engineering and commercial answers for project planners and procurement teams.

What is the primary advantage of the 83 mm T10 system?
The 83 mm frame delivers substantial architectural presence and rigid structural stability, ideal for commercial floorplates requiring heavy internal power/data cable routing and superior physical space division.

Can T10 be combined with thinner partition systems?
Yes. T10 includes engineered thin-wide connecting posts that allow 83 mm spine walls to interface directly with 32 mm T3 workstation divider screens, keeping floorplate costs optimized.

Does T10 support integrated swing doors?
Yes. The T10 catalog includes dedicated door frames, door poles, and commercial hinges, allowing full-height or partial swing doors to be integrated into partition runs for enclosed manager offices.

How does cable management work within the 83 mm frame?
The generous internal cavities house wide horizontal raceways and vertical power poles, accommodating high-density wiring and Smart Power Hub modules without crowding.

Can T10 workstations be reconfigured after installation?
Yes. Panels connect with modular fasteners and tile hooks, allowing tiles, work surfaces, and posts to be disassembled and re-assembled into new configurations as office requirements evolve.

What information is needed to obtain a project quote?
Please send your floor plan (DWG or PDF), total workstation count, desired panel heights, power/data requirements, delivery destination, and target installation timeline.

What are the warranty, MOQ, and production lead times?
Commercial terms vary based on order volume, custom finish selections, and shipping destinations. Exact lead times, container minimums, and warranty terms are confirmed in your formal written quotation.
