HK85 Glass Partition Wall

Glass Partition Walls · Office Partitions

HK85 Glass Partition Wall

An 85 mm aluminium-framed demountable partition wall for meeting rooms, executive offices and full-height glazed frontages, delivered as unitized panels that arrive fully assembled.
Best For
Meeting rooms, executive offices and full-height glazed frontages.
Custom Options
Infill, frame finish, panel height, door type and integrated blinds.
Project Value
Unitized panels that are lifted into place and can be moved, extended or re-glazed later.
Request Quote Get Layout Support

HK85 Wall System Overview

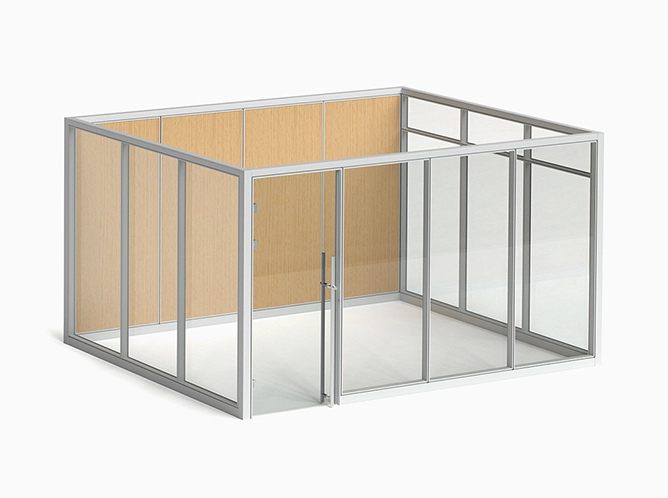

The HK85 Glass Partition Wall, also published as the HK85 Room System, is built on an 85 mm aluminium frame. Walls are formed from factory-made unitized panels, and the catalogue states that the panels arrive fully assembled and ready for installation, so a room is closed off rather than built up on site.
Panels can be filled with single glass, double glass, melamine (MFC), which allows daylight, visual privacy and acoustic softening to be balanced across the same elevation. Clear glass panels are published as spanning up to 3 m without additional vertical support, so a glazed frontage can be planned with fewer interruptions.
Plan before quoting: ceiling height, panel heights, infill mix, door positions and blind locations should be confirmed against the approved elevation drawing
HK85 Glass Partition Wall
glass partition
cubicle office partition
cubicle partition office
office partition walls
glass office partitions
glass room dividers
glass office walls

Features & Options

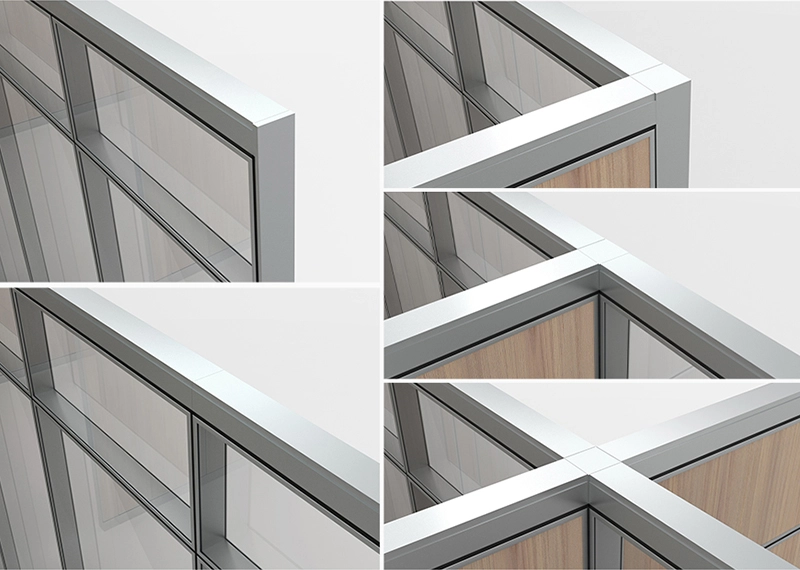

Connections

HK85 partition wall system features robust 1.5-2mm aluminum framing, delivering exceptional structural support. Its clean linear profiles infuse spaces with contemporary elegance, while precision-engineered aluminum connections ensure uncompromising durability.

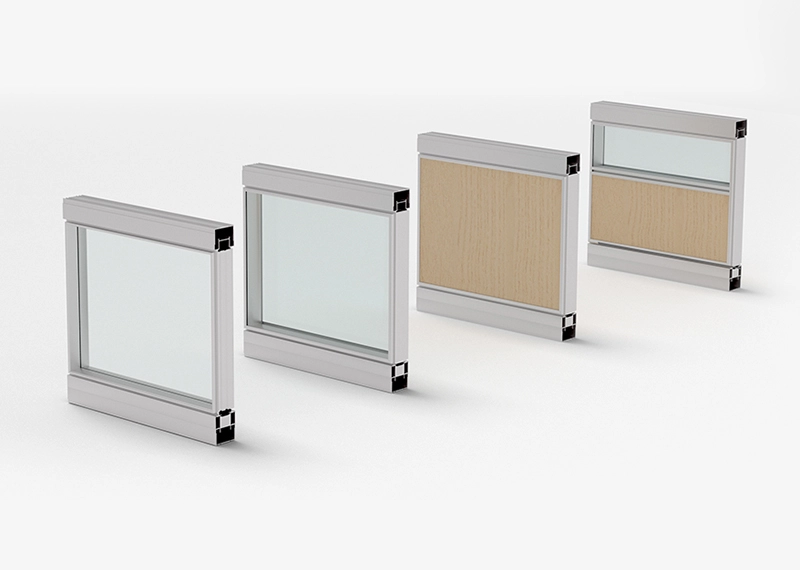

Wall Types

HK85 partition walls seamlessly match the aesthetics, tactile quality, and acoustics of traditional construction while offering framed panels and frameless glass options to accommodate diverse privacy requirements.

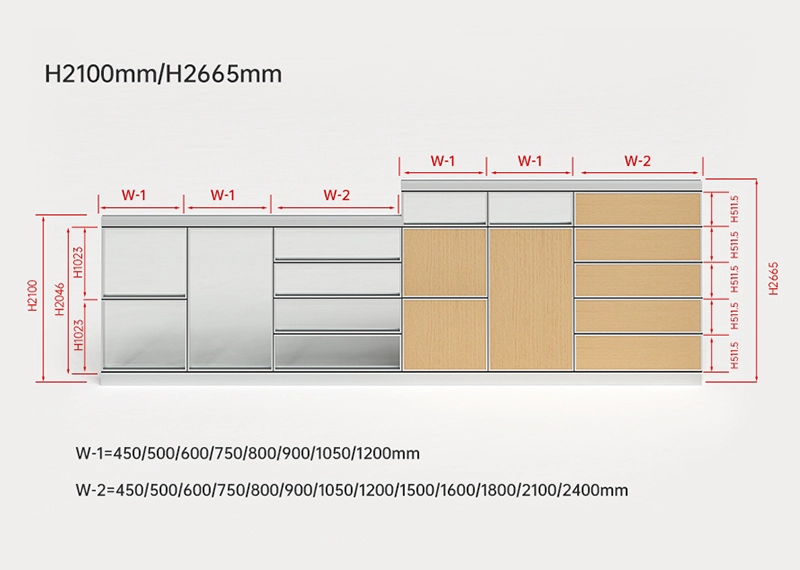

Dimension

HK85 offers a wide range of panel dimensions to meet different requests from height to width. Also optional cable channel/raceway helps in different cabling demand. Enable you to transform office cubicle easily.

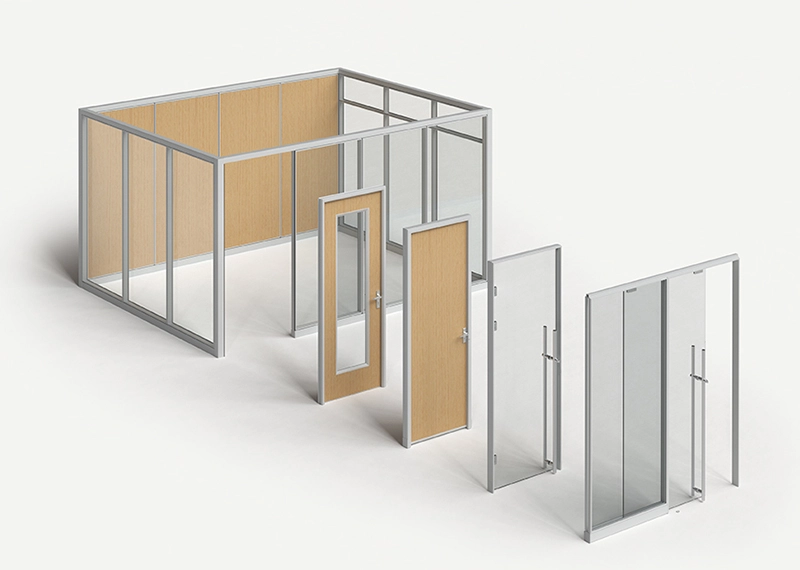

Door options

Four leaf constructions, each available as a swing or a sliding module, so one run can mix operating and fixed bays.

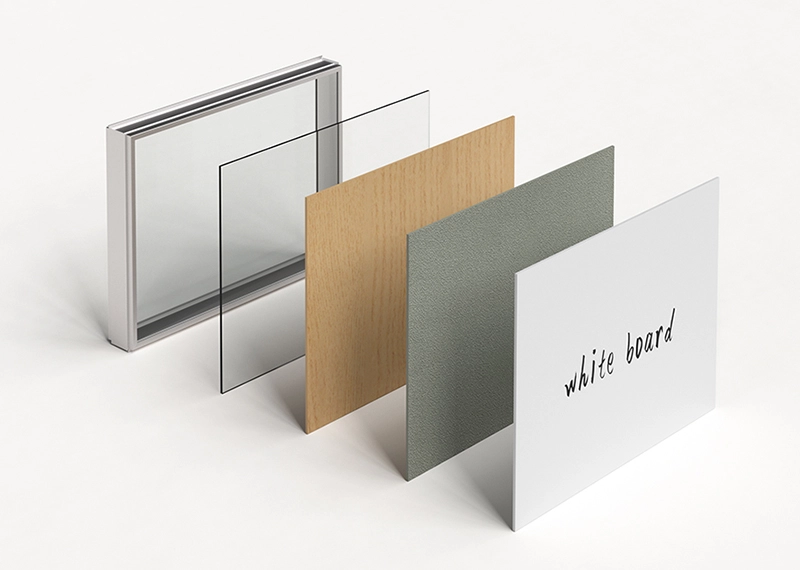

Material choices

HK85 partition wall system is available in different materials. It allows designers/users to choose different materials from fabric, laminate/HPL, PET, steel to glass for their own demands.
HK85 Glass Partition Wall

Product Parameters

Only values published by Clover are listed. Panel combinations and door positions remain subject to the approved elevation drawing.

Specifications for HK85 Glass Partition Wall
ITEMOPTIONSNOTES
System HK85 glass partition wall system 85 mm aluminium profile
Frame material Aluminium
Infill Single glass, double glass or melamine (MFC) Frame finishes are selected from the Clover steel swatch card
Dimension Height = 2100-3000 mm
Width = 600-1200 mm		 Quote by floor plan
Connection systems 2-way, 3-way, 4-way and straight connection Corner sections of 85+4, 85+8 and 54 mm are published with their own part codes
Doors Sliding door, glass swing door, half glass swing door and MFC swing door Four published door types within the same system

Customization Options

Contact us to confirm finishes and resources for your project.

PRODUCT INFORMATION

Materials & Colors

Melamine
XD-1001 Grey
XD-1001 Grey
XD-1004 Charcoal Grey
XD-1004 Charcoal Grey
XD-1009 White
XD-1009 White
XD-1014 Teak
XD-1014 Teak
XD-1016 Walnut
XD-1016 Walnut
XD-1020 Maple
XD-1020 Maple
XD-1021 Fir
XD-1021 Fir
XD-1022 Red Oak Relievo
XD-1022 Red Oak Relievo
XD-1023 White Oak Relievo
XD-1023 White Oak Relievo
XD-1024 Engineer Oak
XD-1024 Engineer Oak
XD-1025 Black Oak Relievo
XD-1025 Black Oak Relievo
XD-1026 Oak Relievo
XD-1026 Oak Relievo
XD-1028 Red Walnut
XD-1028 Red Walnut
XD-1037 Bullace Elm
XD-1037 Bullace Elm
XD-1040 North American Walnut
XD-1040 North American Walnut
XD-1051 Black
XD-1051 Black
XD-1056 Storm
XD-1056 Storm
XD-1057 Grey Fog
XD-1057 Grey Fog
Metal
F1 Platinum
F1 Platinum
UTOR-69 Matt White
UTOR-69 Matt White
UTOR-64 Red
UTOR-64 Red
UTOR-55 Blue
UTOR-55 Blue
UTOR-20 Anodized Grey
UTOR-20 Anodized Grey
UTOR-13 White
UTOR-13 White
UTOR-07 Charcoal Grey
UTOR-07 Charcoal Grey
UTOR-01 Sanded Greay
UTOR-01 Sanded Greay
F3 Black
F3 Black
Fabric
15-01
15-01
15-02
15-02
15-03
15-03
15-04
15-04
15-06
15-06
15-07
15-07
15-08
15-08
15-09
15-09
15-10
15-10
15-11
15-11
15-13
15-13
15-15
15-15
15-16
15-16
15-17
15-17
15-18
15-18
15-19
15-19
15-20
15-20
15-21
15-21
15-41
15-41
15-44
15-44
15-48
15-48
15-49
15-49
15-55
15-55
15-75
15-75
15-101
15-101
15-103
15-103
15-104
15-104
15-105
15-105
15-106
15-106
15-107
15-107
15-108
15-108
15-109
15-109
15-110
15-110
15-111
15-111
15-118
15-118
15-119
15-119
15-153
15-153
15-155
15-155
15-158
15-158
15-161
15-161
15-164
15-164
15-167
15-167
15-171
15-171
15-175
15-175

3D Models

Downloads

End-to-End Office Furniture Project Journey

A clear six-step process for product selection, order confirmation, production, and delivery.

  1. 01. Inquiry
    & Requirements

    Share floor plans, quantity, functional zones, project location and target timeline.

  2. 02. Configuration
    & Proposal

    Confirm product dimensions, material options, design details, storage and power layout.

  3. 03. Sample &
    Material Approval

    Review material swatches and technical drawings; confirm colors & specifications. Client sign-off before production.

  4. 04. Production
    & Inspection

    In-process and finished-goods checks against approved specifications.
    Full QC validation.

  5. 05. Packing
    & Shipping

    KD packing, container loading and logistics coordination. Complete shipping documentation.

  6. 06. After-sales
    Support

    Assembly guidance and spare-parts service after handover. Long-term ongoing support.

START A PROJECT

Enquire About This Product

Send your project requirements, quantity and destination so we can respond with relevant product information and a quotation.

Product: HK85 Glass Partition Wall

  • Quote and configuration advice for this model.
  • Material samples to confirm mesh and cushion colors.
  • Specification and test documents on request.
